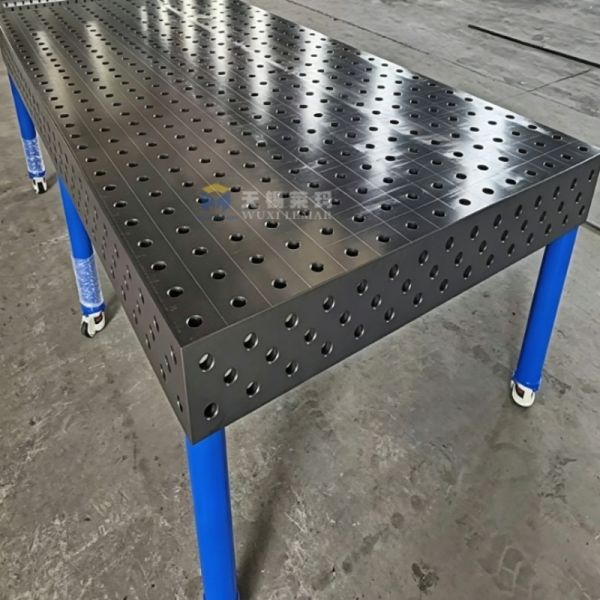

High Load Bearing D28 3D Welding Table for Thick Steel Plate Welding Processing
High Load Bearing D28 3D Welding Table is a heavy-duty industrial modular welding platform specially designed for thick steel plate, heavy steel structure, chassis, frame and large mechanical fabrication. Different from light-duty D16 welding tables, the D28 series adopts a Φ28mm heavy-duty hole system, ultra-rigid reinforced body and high-load structural design, providing stable support and precise clamping for thick plate welding over 10mm, solving workpiece deformation, positioning deviation and low efficiency problems in heavy steel fabrication.
Widely used in structural steel workshops, heavy machinery manufacturing, truck chassis fabrication, engineering equipment, vessel and marine accessory production, this 5-sided 3D flexible welding table replaces traditional custom jigs and realizes one platform for all heavy welding jobs.
Technical Specifications
Custom configurations available upon request.
| Size (L × W) | Number of Holes | Approx Weight | Flatness | Reference Price |
| 1000×1000mm | 10×10 = 100 holes | 345kg | 0.01mm/m² | Send Inquiry |
| 1500×1000mm | 15×10 = 150 holes | 480kg | 0.01mm/m² | Send Inquiry |
| 2000×1000mm | 20×10 = 200 holes | 655kg | 0.01mm/m² | Send Inquiry |
| 2000×1500mm | 20×15 = 300 holes | 1100kg | 0.01mm/m² | Send Inquiry |
| 2500×1500mm | 25×15 = 375 holes | 1250kg | 0.01mm/m² | Send Inquiry |
| 3000×2000mm | 30×20 = 600 holes | 2100kg | 0.01mm/m² | Send Inquiry |
Application Industries
- Heavy steel structure fabrication
- Truck, trailer and chassis manufacturing
- Construction machinery & equipment base
- Pressure vessel & thick pipe fabrication
- Marine accessories & large metal frames
- Robot automatic welding production lines
Why Choose Our D28 Welding Tables?
We are a professional manufacturer specializing in 3D welding tables and fixture accessories. With advanced production equipment and strict quality control, our products are exported to Europe, North America, Australia, and many other countries. We are committed to providing high-precision welding solutions and reliable service for global customers.
- Material: Low-cost models typically use thin-walled HT200 cast iron without adequate aging; our products feature HT300 cast iron with thickened ribbing and undergo dual-stage aging, ensuring resistance to deformation under heavy loads.
- Surface Treatment: Low-cost models use simple black oxide or paint finishes that flake off easily upon contact with hot weld spatter; our products utilize deep-layer gas nitriding for superior wear and heat resistance.
- Hole Precision: Low-cost models have hole-spacing tolerances exceeding ±0.1mm, leading to loose fixture connections; our products maintain strict ±0.05mm tolerances, ensuring a gap-free fit during repeated long-term clamping.
- Load-bearing Structure: Low-end models use thin-walled steel tubing for legs, with a single-point load capacity of under 500kg; our heavy-duty models feature thickened tubing, offering a 1,000kg load capacity per leg and compatibility with thick steel plates.
FAQ
Q: What is the load capacity of the D28 welding table?
A: The overall load ranges from 3 to 8 tons according to table size. The reinforced structure supports long-time heavy thick plate placement without deformation.
Q: What is the difference between D28 and D16 welding tables?
A: D28 is a heavy-duty version with larger Φ28mm holes, stronger clamping force and higher rigidity. It is built for thick steel welding, while D16 is only suitable for light and thin workpieces.
Q: Can I splice multiple tables for large workpieces?
A: Yes. The 5-sided hole system allows unlimited side-by-side splicing to handle extra-long and oversized steel structures.
Q: Is this table suitable for robot welding?
A: Absolutely. The 0-grade precision table features flatness up to 0.05mm/1000mm, fully compatible with automatic robot welding lines.
Q: Is the table surface wear and spatter resistant?
A: Yes. Adopting nitriding treatment, the surface is high-temperature resistant, anti-spatter and rust-proof for long service life.
Q: What after-sales support do you provide?
A: We provide 1-year table body warranty, full inspection reports, installation guidance and long-term accessory supply.
