D16 3D Welding Fixture Table for Efficient Metal Joining and Assembly

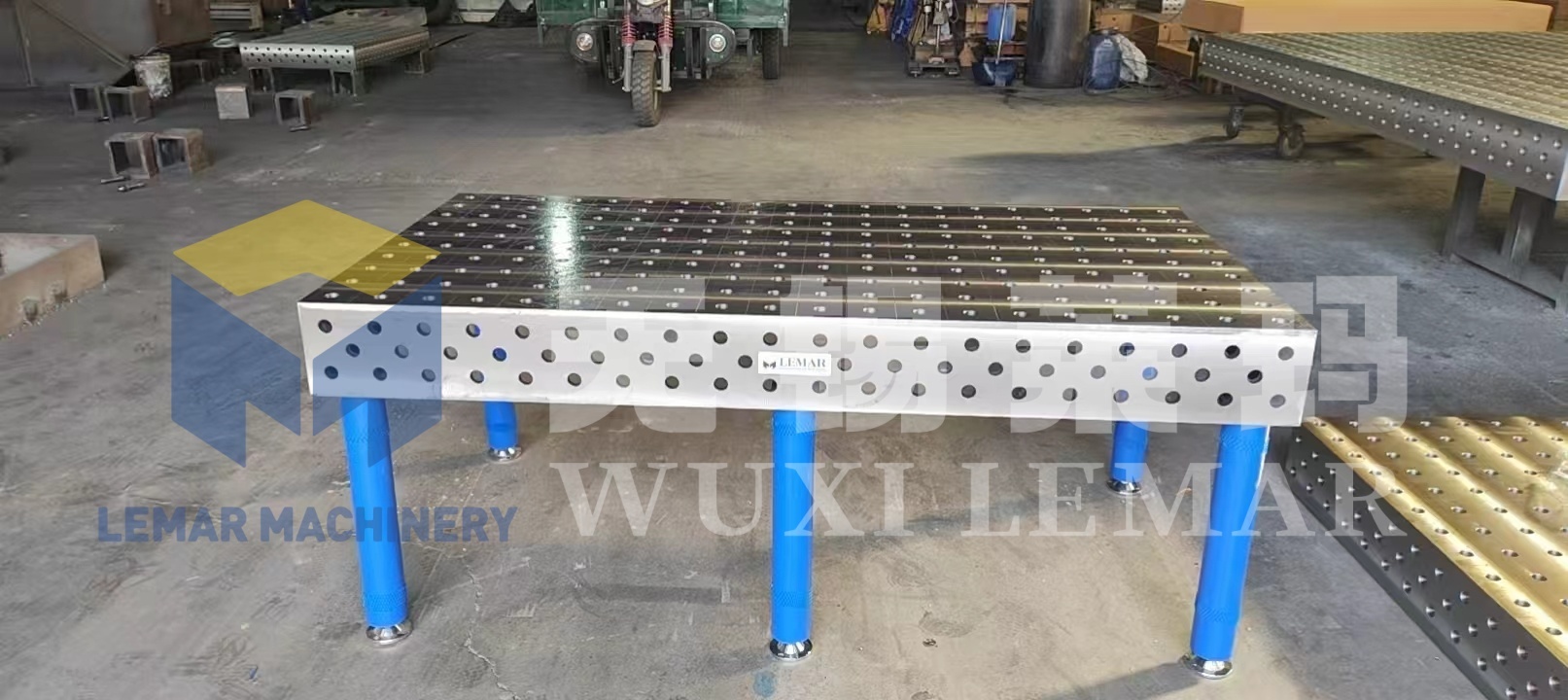

The D16 3D Welding Fixture Table is a high-precision modular 3D flexible welding workbench specifically developed for metal processing enterprises to enable fast metal splicing and standardized component assembly. Featuring Φ16 positioning holes and a dense 50×50mm five-sided full grid structure, this fixture table supports X, Y, Z three-dimensional multi-angle clamping of thin plates, tubular workpieces, and small precision frames.
The entire table undergoes stress relief annealing and integral nitriding treatment to maintain long-term flatness and wear resistance. When matched with universal D16 series modular fixtures, it eliminates the need for repeated custom welding molds, significantly shortens fixture setup time, ensures uniform welding dimensional accuracy, and comprehensively improves production efficiency for mixed-batch precision metal fabrication.
Standard Size Specifications
| Model No. |
Table Size (L×W) |
Table Thickness |
Net Weight |
Load Capacity |
| D16-0806 |
800 × 600 mm |
12 mm |
~75 kg |
600 kg |
| D16-1008 |
1000 × 800 mm |
12 mm |
~120 kg |
800 kg |
| D16-1208 |
1200 × 800 mm |
12 mm |
~145 kg |
1000 kg |
| D16-1210 |
1200 × 1000 mm |
12 mm |
~185 kg |
1200 kg |
| D16-1510 |
1500 × 1000 mm |
12 mm |
~230 kg |
1500 kg |
| D16-1610 |
1600 × 1000 mm |
12 mm |
~255 kg |
1500 kg |
| D16-2010 |
2000 × 1000 mm |
12 mm |
~320 kg |
2000 kg |
| D16-2412 |
2400 × 1200 mm |
12 mm |
~460 kg |
2500 kg |
| D16-3015 |
3000 × 1500 mm |
12 mm |
~720 kg |
3000 kg |
| D16-4020 |
4000 × 2000 mm |
12 mm |
~1280 kg |
3500 kg |
Need a custom size or a complete fixture package? Contact our engineering team with your workpiece drawings and we'll provide a tailored quotation within 24 hours.
Structural Principle
Five-Sided 3D Positioning
The top surface supports flat workpiece placement, while the four vertical sides allow for the mounting of right-angle supports and vertical clamps. This enables 3D fixation—securing workpieces vertically, laterally, and longitudinally—without the need for custom-made jigs. It accommodates comprehensive clamping for tubing, bent parts, and complex sheet metal components.
Universal Clamping System
The entire accessory range utilizes standard D16 (16mm) positioning pins. Accessories include quick-locking pins, hold-down clamps, L-shaped right-angle blocks, V-blocks, extension supports, height-adjustment blocks, telescopic tensioning clamps, and positioning angle brackets.
Advantage: A single welding table accommodates dozens or even hundreds of different workpiece types, eliminating the need for custom-molded welding fixtures.
Reinforced Underside Structure
A grid-patterned rib structure beneath the tabletop prevents deformation under high welding temperatures and ensures consistent precision during long-term, repeated use.
Payment and Warranty Policy
Payment: T/T, L/C, , PayPal, etc. Standard foreign trade terms require a 30% deposit, with the balance settled prior to shipment.
Warranty: 2-year warranty on the main structure of the welding table (free repair or replacement for deformation not caused by misuse or for issues related to manufacturing quality); standard 1-year warranty on fixture accessories. Lifetime free online technical support is provided, and for overseas clients, engineers can arrange remote video consultations for fixture design solutions.
FAQ
Q: What documents can you provide for customs clearance and CE inspection?
A: We supply CE mechanical safety certificate, material test report, nitriding process inspection record, factory precision test sheet, packing list and commercial invoice for global export customs clearance.
Q: What industries are D16 3D welding tables suitable for?
A: Ideal for precision sheet metal workshops, medical equipment frames, new energy small brackets, electric vehicle parts, laboratory test frames, stainless steel furniture and automated small robotic welding lines. Not recommended for heavy thick steel plates over 10mm (choose D28 model instead).
Q: Can this D16 table work with robotic welding stations?
A: Yes. The standardized hole grid is fully compatible with mainstream ABB, FANUC, KUKA and domestic welding robots. No extra customized adapter plates are required for quick installation.
Q: What's your minimum order quantity (MOQ)?
A: MOQ is 1 unit for standard D16 table models for trial orders. For custom non-standard sizes or full sets of jig kits, MOQ is still flexible without strict quantity limits. Bulk orders enjoy special wholesale discounts.
Q: What if goods arrive damaged after long sea transport?
A: All shipments are professionally packed and insured. In case of transport damage, we provide comprehensive support for claims and replacements.
Ready to boost your workshop productivity? The D16 3D Welding Fixture Table for Efficient Metal Joining and Assembly delivers stable precision and long-term cost savings for all precision metal processing projects. Contact us today with your demand, and our sales team will provide customized plans and factory-direct prices immediately.
