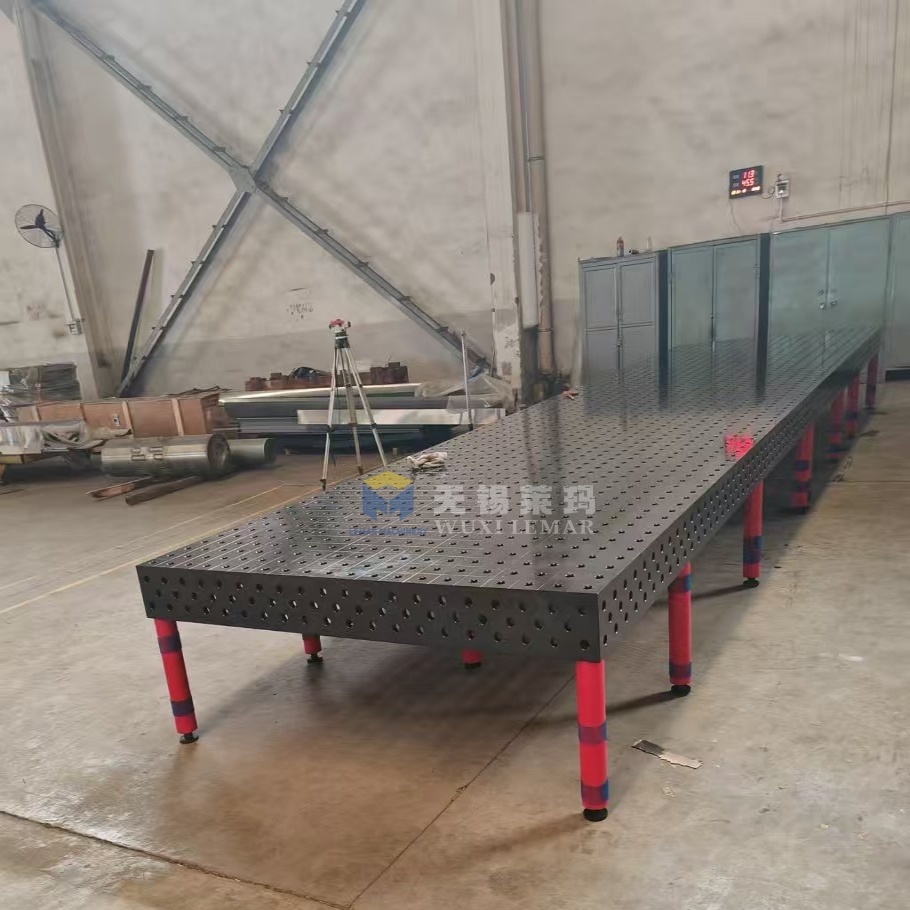

Precision Ground D28 Modular Welding Table for Accuracy
Consistent dimensional accuracy matters for premium metal fabrication. Our Precision Ground D28 Modular Welding Table utilizes precision grinding technology on the work surface to minimize benchmark deviation compared with ordinary milled welding tables.
Compatible with all universal D28 fixturing parts, this modular welding platform lets you rapidly rebuild clamping layouts to handle different workpieces. Stress-relieved raw materials effectively reduce deformation under welding heat. You can select fixed supports, adjustable legs or mobile caster bases, and connect several tables together for oversized components.
Perfect fabricating partner for precision structural parts, equipment racks and engineering machinery assemblies.
Technical Specifications
| Bore diameter |
Φ28 mm (D10 tolerance) |
| Grid spacing |
100 mm × 100 mm |
| Bore depth |
35-45 mm (ensuring sufficient engagement depth for locking pins) |
| Hole center-to-center tolerance |
±0.03-±0.05 mm (precision-ground grade) |
| Layout |
Five-sided hole configuration (D28 bores on top surface and all four side faces), enabling 3D multi-angle clamping |
| Compatibility |
Compatible with global standard D28 tooling system and interchangeable with major European tooling brands |
Production Lead Time
- Standard-sized tables (1000×800 to 3000×1500): S355 steel precision-ground welding tables - Blank aging + machining + precision grinding + inspection: 12-18 days. Additional 5-7 days required for nitriding treatment.
- HT300 cast iron welding tables: Long casting cycle; typical overall lead time is 25-35 days.
- Extra-large custom sizes (>3000 mm): Lead time to be assessed separately.
Important Considerations
- The platform can only reduce welding deformation; it cannot counteract the shrinkage and distortion caused by the workpiece's inherent welding stresses. Allowances for welding shrinkage must still be factored into the process.
- Whether made of steel or cast iron, the welding table will suffer a permanent loss of precision if subjected to prolonged extreme heat, overloading, or severe impact.
- Higher precision grades entail stricter requirements for transport and handling; reinforced wooden-frame packaging is mandatory.
Logistics Details
- Standard export packaging: Fumigated solid wood crates or fumigation-free plywood crates
- Protective blankets applied to the tabletop surface; plastic dust plugs installed in all threaded and locating holes
- Base and tabletop packaged separately (for large tabletops) to prevent deformation caused by transport stress
- Markings: Lifting points, "This Side Up" indicators, and impact warnings
FAQ
What is your minimum order quantity?
We accept single unit orders for standard sizes. Bulk orders enjoy preferential unit prices.
Which ports do you ship from?
We mainly arrange shipment from Shanghai and Ningbo port. Door to door delivery solutions are available on request.
Can you offer OEM or customized sizes?
Yes. Custom table dimensions, special base structures and logo marking services are supported. Send us your drawing or requirements for quotation.
Do you have certification for the D28 welding table?
Our products follow international processing standards. Inspection reports can be provided on request.
How to calculate sea freight?
Freight fluctuates regularly. We will check the latest shipping cost once you confirm table size, quantity and destination port.
Invest in the Precision Ground D28 Modular Welding Table for Accuracy to achieve consistent machining accuracy and lower fixture costs.
Share your workshop conditions and workpiece requirements with us via inquiry, and we will work out the most suitable solution for your fabrication business.
